Pico SDK

Download the pico SDK from the official GitHub into your chosen directory. I don't like looking at it, so I put it in a hidden folder.

mkdir ~/.picob && cd ~/.pico
git clone https://github.com/raspberrypi/pico-sdk.git

Add the SDK to your PATH. I like using zsh instead of bash.

nano ~/.zshrc

append the following lines to the bottom of the file

export PICO_SDK_PATH="/home/nathan/.pico/pico-sdk"

Log out and back in to update the PATH or

. ~/.zshrc

add sub-modules

cd ~/.pico/pico-sdk/
git submodule update --init

Picotool (optional)

download code, compile, move to local bin

cd ~/.pico
git clone https://github.com/raspberrypi/picotool.git
cd picotool
mkdir build && cd build
cmake ../
sudo cp picotool /usr/local/bin/

Pico-extras (optional)

download code, compile, and add to path.

cd ~/.pico
git clone https://github.com/raspberrypi/pico-extras.git
nano ~/.zshrc

append the following lines to the bottom of the file

export PICO_EXTRAS_PATH="/home/nathan/.pico/pico-extras"

Log out and back in to update the PATH or

. ~/.zshrc
cd ~/Downloads
git clone https://github.com/raspberrypi/pico-examples
cd pico-examples
mkdir build && cd build
cmake ..
cd blink


Hold the BOOTSEL button (White color button near the micro USB connector) located on the Pico board while connecting the Pico to the computer.

Find and mount the pico

lsblk -f

look for something like

└─sde1 vfat FAT16 RPI-RP2 0009-4A70`

/dev/sde is the device /dev/sde1 is a filesystem on the device.

sudo mkdir /mnt/usb && sudo chown $USER:$USER /mnt/usb
sudo mount /dev/sde1 /mnt/usb

Copy over the "blink.uf2" file to the pi.

cp blink.uf2 /mnt/usb

It should immediately start blinking.

CONT. for ECE 101

Download the three multimeter files from the course website. Use RMB on each link and select "Save as...". I would include wget/curl commands, but those hardlinks could change. After you download them, copy them to the adc_console directory.

cp adc_console.c digits.c CMakeLists.txt ~/Downloads/pico-examples/adc/adc_console/

Remove the prior builds and compile

cd ~/Downloads/pico-examples
rm -rf build
mkdir build && cd build
cmake ..
cd adc/adc_console

put the pi in BOOTSEL mode and copy over .uf2 as shown before.

sudo cp adc_console.uf2 /mnt/usb

Monitor the serial output

There are several ways to do this. I like using screen, but you can use a GUI like Putty or a command line tool like minicom. The first few steps to identify the pico serial interface will still be needed to use the other methods.

First, check the kernel message buffer (basically a system log) for info relating to the pico

sudo dmesg

the output to look for:

[169801.734603] usb 5-1: USB disconnect, device number 4
[169801.735187] device offline error, dev sde, sector 260 op 0x1:(WRITE) flags 0x0 phys_seg 1 prio class 2
[169801.735195] Buffer I/O error on dev sde1, logical block 259, lost async page write
[169802.064671] usb 5-1: new full-speed USB device number 5 using xhci_hcd
[169802.222607] usb 5-1: New USB device found, idVendor=2e8a, idProduct=000a, bcdDevice= 1.00
[169802.222615] usb 5-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[169802.222617] usb 5-1: Product: Pico
[169802.222619] usb 5-1: Manufacturer: Raspberry Pi
[169802.222621] usb 5-1: SerialNumber: E66098F29B400D32
[169802.285360] cdc_acm 5-1:1.0: ttyACM0: USB ACM device
[169802.285388] usbcore: registered new interface driver cdc_acm
[169802.285391] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters

specifically, cdc_acm 5-1:1.0: ttyACM0: USB ACM device. /dev/ttyACM0 is the port we can use to talk to the pico.

sudo screen /dev/ttyACM0 115200

To end the session, press Ctrl+A followed by K. Alternatively, press Ctrl+A, type :quit and confirm it by pressing Enter.

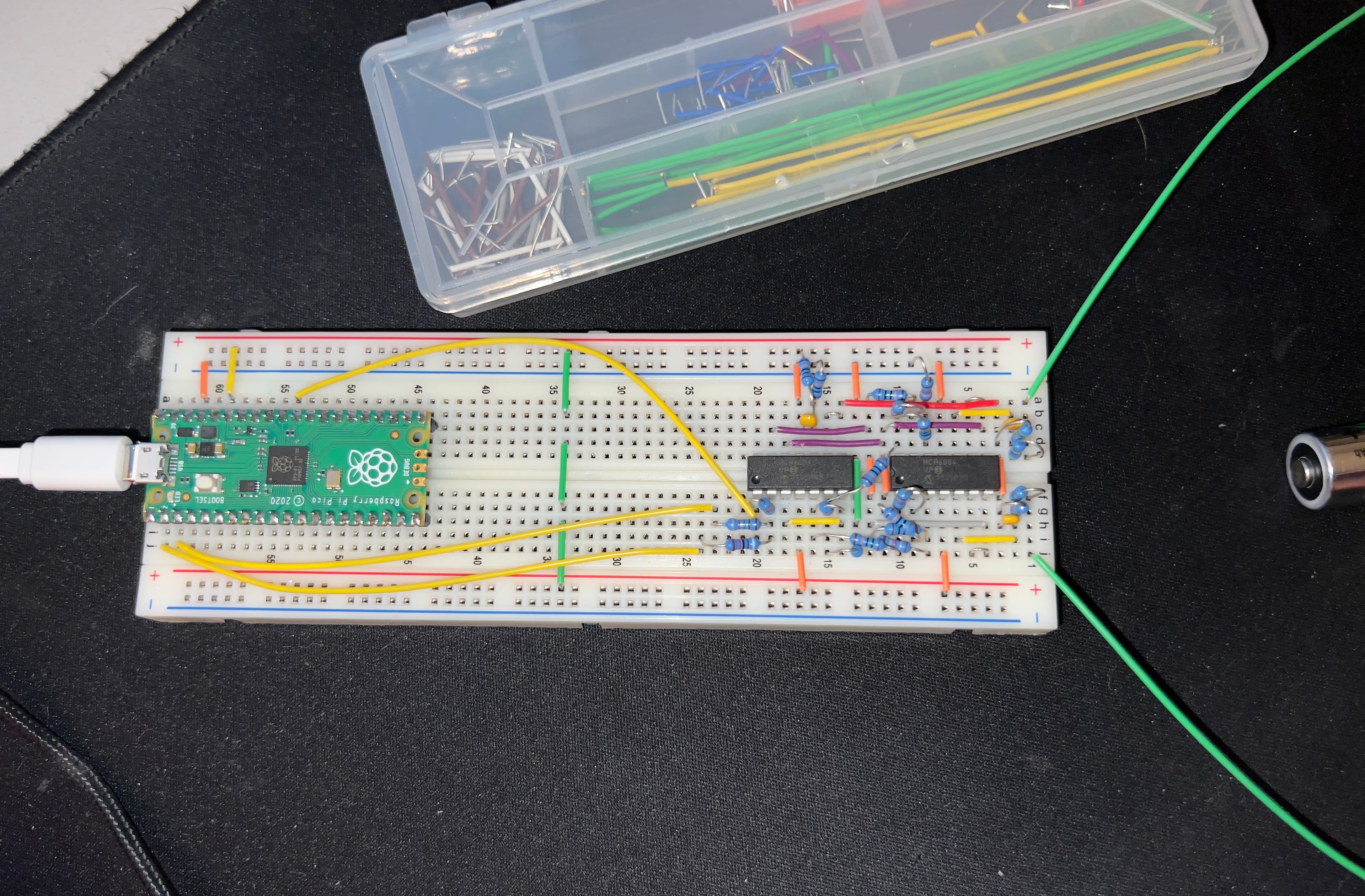

With that, you should be connected. As you can see from the screenshot, my multimeter (which only has the pico plugged in - no power supply) is reading 0.02. This shows that I need to calibrate the meter.
